ST31

Dependent Parking System ..

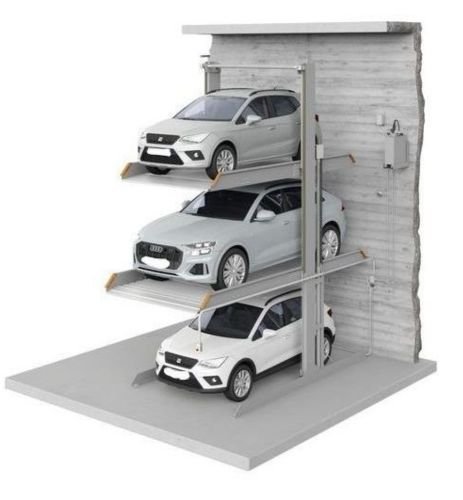

ST31 : 3 Level Dependent Parking System [Without Pit]

The Stack Parking System That Depends On Three Level

In a very effective manner, the ST31 improves the quantity of parking places available.
For structures with considerable height in parking areas or open parking spaces, ST-31 is the ideal option.One car’s footprint may accommodate three parking spaces thanks to this technique. To get the car from the higher two platforms, one must drive out of the bottom platform car.
  • 3 Level Dependent Parking System
  • 2 Sub models
  • On Ground & Middle Car Must be Removed before lowering
  • Car Present Sensor (Optional)
  • Synchro Shaft for Lifting Synchronization
  • Longer Platform to cover Longer Vehicles.
Download Data sheet
Specifications -
Compatible with all passenger cars based on clearance and maximum surface load.
  • Maximum Weigh Capacity: 2000 kg
  • Allowable Car Height: 1.6 m to 1.8 m
  • Upper Platform Width: 2.1 m to 2.3 m
  • Lower Platform Width: 2.2 m to 2.4 m
For more detailed specifications, please refer to the complete product datasheet.
Key Benefits -
  • Ideal for residential buildings and commercial projects
  • Increases underground parking capacity in hospitals, malls, cinemas, hotels, etc.
  • Suitable for outdoor parking as well
  • Provides 3 spaces within the footprint of 1 car
  • Leaves room for additional amenities
  • Safely accommodates cars
  • Protection against theft and damage
  • Features sequential vertical platform movement
  • Optimizes access times
  • User-friendly key switch controls
Features -

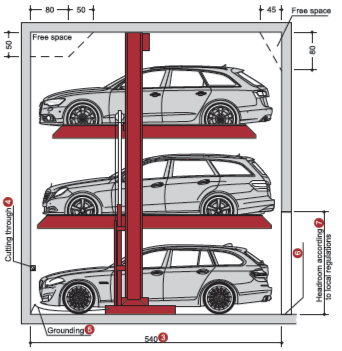

  • All Space requirments minimum finished dimenstions
  • Tolerences for space requirents dimensions in CM
  • SP(Single Platform) = 1 Vehicles
Suitable For -
Standard Passenger Cars –
For PW 2.3 m according to clearance and maximum surface load
Width 190 Cm
Weight Max. 2000 Kg
Wheel Load Max. 500 Kg

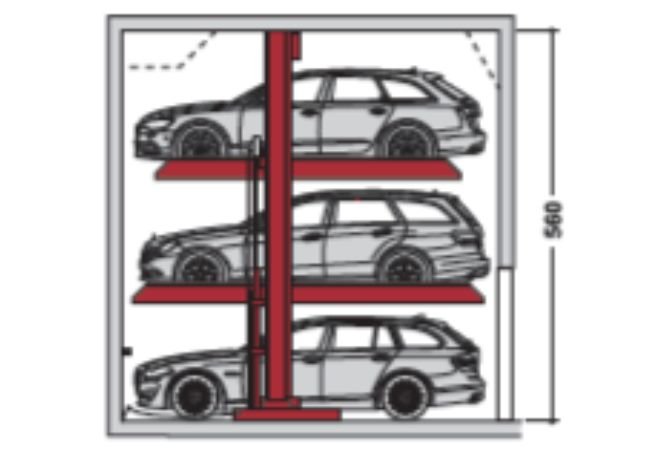

ST 31-560
Height Height Upper Height Middle Height Lower
560 160 160 180

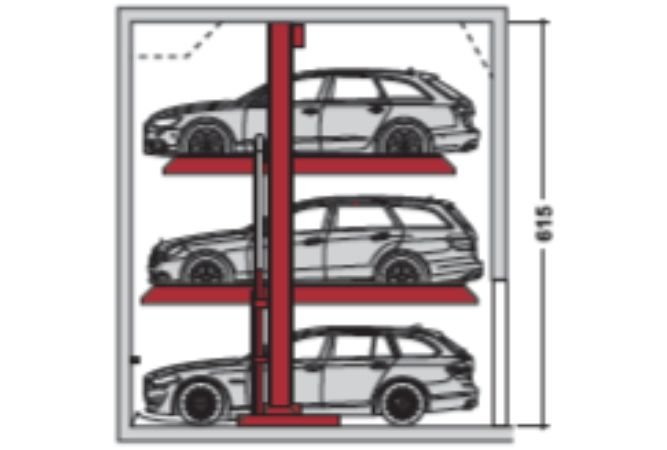

ST 31-615
Height Height Upper Height Middle Height Lower
615 180 180 180

Indac Parking offers a seamless and stress-free parking experience tailored to your needs. With innovative technology, robust security measures, and a commitment to customer satisfaction, we redefine convenience in urban parking.
