SP20

Independent Parking Systme

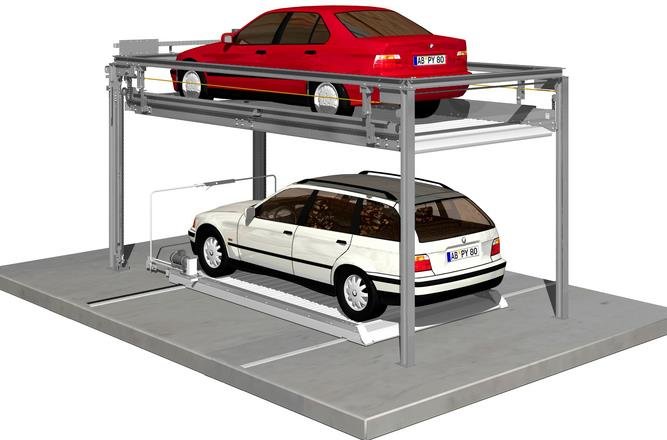

SP20 : 2 Level Independent Puzzle Parking System [Without Pit]

Absence Of A Drive-Through Pit In The Puzzle Parking System

The SP-20 is available in a set with additional models from the SP series.

With this puzzle parking system, vehicles can park in grid-shaped slots on two levels. The SP-20 can be readily paired with the SP-21, and SP-31 as an extra row of parking because it is drive-through compatible. This type of combination parking system allows you to have even more parking places inside the same floor area since it eliminates the need for a second access lane. To get the parking spaces where they want them, they are shifted both horizontally and vertically. Up to 19 cars and 2–10 grids can be used with this setup.
Download Data sheet
Key Benefits -
  • Suitable for residential and commercial applications
  • Increases underground parking capacity in hospitals, malls, cinemas, hotels, etc.
  • Offers 3 spaces within a footprint of 2 cars and up to 19 spaces within a footprint of 10 cars
  • Allows space for additional amenities
  • Safely accommodates cars
  • Provides protection against theft and damage
  • Optional safety gates available upon request
  • Features sequential horizontal and vertical platform movements
  • Optimizes access times
  • User-friendly key switch controls
  • Ground-level access to all parking levels
  • Provides drive-through capability for vehicles
  • An autonomous system
Features -
  • 2 Level Independent Puzzle Parking System
  • 2 Sub models
  • Easy for Door opening
  • Loading Capacity 2.0 / 2.5 Ton
Specifications -
Compatible with all passenger cars based on clearance and maximum surface load.
  • Maximum Weight Capacity: 2000 kg
  • Allowable Car Height: 1.5 m to 2.0 m
  • Upper Platform Width: 2.2 m to 2.7 m
  • Lower Platform Width: 2.0 m to 2.4 m
For more detailed specifications, please refer to the complete product datasheet.

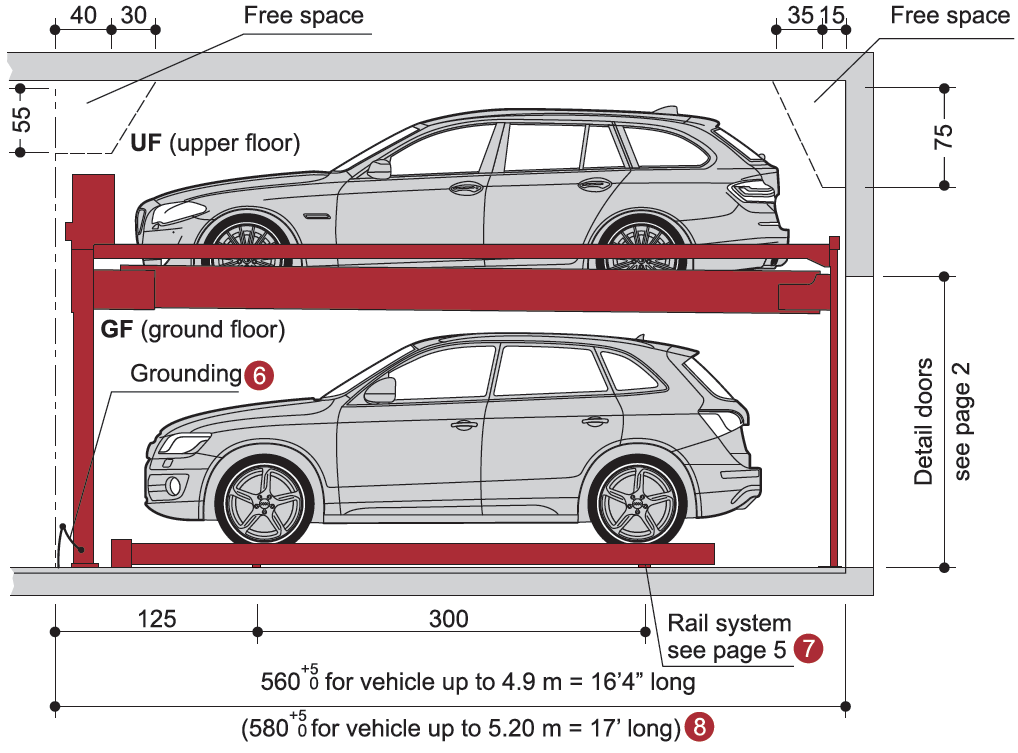

SP 20-345
Height UFGF
345150165
SP 20-405
Height UFGF
405175200

Indac Parking offers a seamless and stress-free parking experience tailored to your needs. With innovative technology, robust security measures, and a commitment to customer satisfaction, we redefine convenience in urban parking.
