S21 And S21H

Dependent Parking System

S21, S21H : 2 Level Dependent Parking System [Without Pit]

Increasing Effectiveness: Presenting the S21 and S21H Dependent Parking System

Increases the important parking space by double

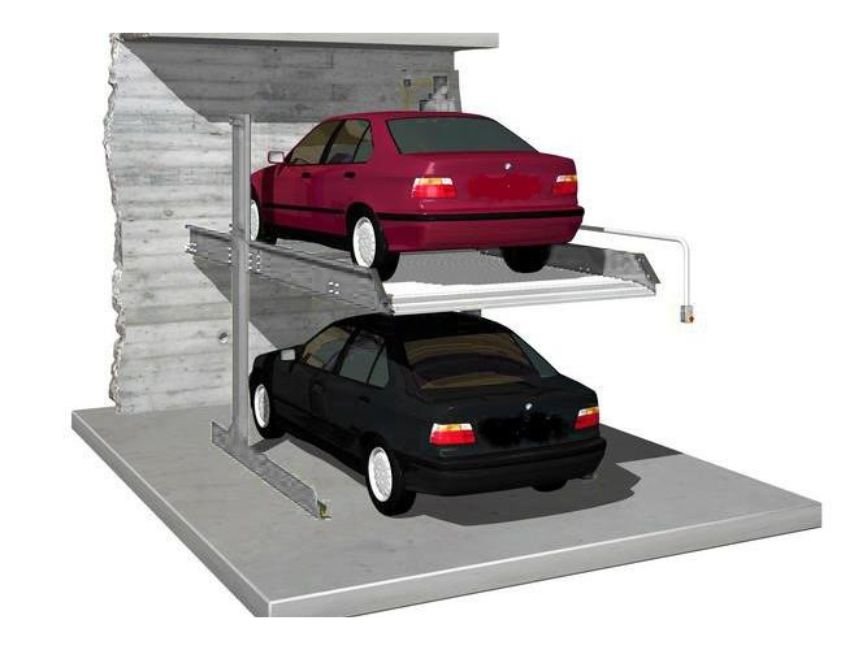

Two parking spots are created by this system: one on the platform above and one at ground level. To utilize the higher platform, the lower vehicle must be driven outside. S21 And S21H ensures that parking and vehicle retrieval will go smoothly.
  • 2 Level Dependent Parking System
  • On Ground Car Must be Removed before lowering
  • Car Present Sensor at Entry Level
  • Leaf Chains for Lifting Synchronization
  • Multivario [With manual Height Adjustment ]
  • Shorter Platform to cover W Vehicles
Download Data sheet
Key Benefits -
  • Ideal for residential buildings and commercial projects
  • Increases underground parking capacity in hospitals, malls, cinemas, hotels, etc.
  • Suitable for outdoor parking applications as well
  • Provides 2 spaces within the footprint of 1 car
  • Reduces space usage by up to 50 percent compared to conventional parking
  • Leaves room for additional amenities
  • Safely accommodates cars
  • Protection against theft and damage
  • Features sequential vertical platform movement
  • User-friendly key switch controls
  • Optimizes access times
Features -

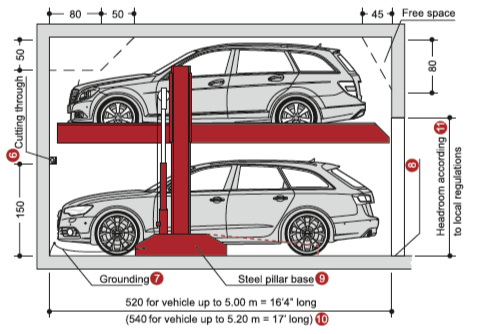

  • All Space requirments minimum finished dimenstions
  • Tolerences for space requirents dimensions in Cm
  • SP(Single Platform) = 2 Vehicles
  • Loading Capacity 2.0 / 2.5 Ton
Suitable For -
Standard Passenger Cars –
Station Wagon,SUV,Van according to clearance and maximum surface load
Specifications -

Designed to accommodate all passenger cars based on clearance and maximum surface load.

  • Maximum Weigh Capacity: 2000 kg
  • Allowable Car Height: 1.5 m to 2.0 m
  • Platform Width: 2.2 m to 2.7 m
For more detailed specifications, please refer to the complete product datasheet.
– Standard Spacial
Width 190 cm 190 cm
Weight Max. 2000 Kg Max. 2500 Kg
Wheel Load Max 500 Kg Max. 625 Kg

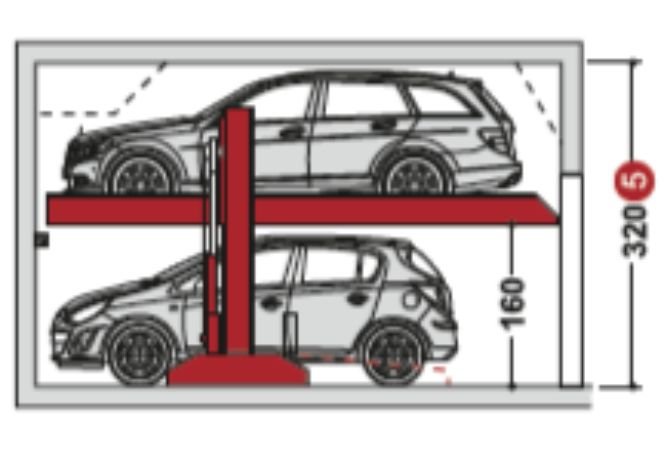

SM 21-160
Height Upper Height Upper Height Upper
320 150 150

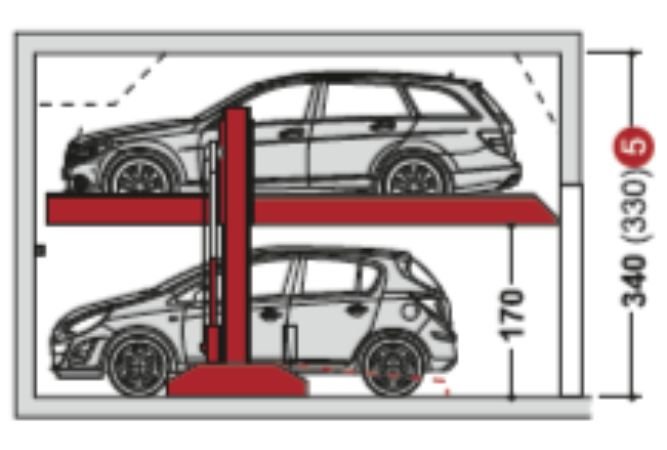

SM 21-170
Height Height Upper Height Upper
340 160 160
330 150 150

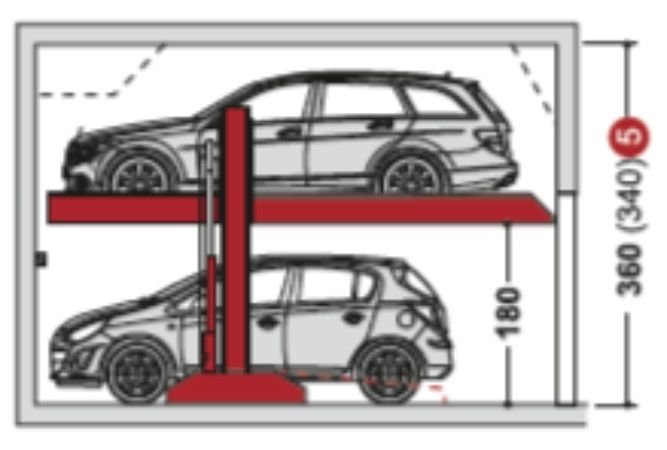

SM 21-180
HeightHeight UpperHeight Upper
360170170
340150170
SM 21-190
Height UpperHeight UpperHeight Upper
380180180
350150180
SM 21-200
Height Height UpperHeight Upper
400190190
350150190
SM 21-210
Height Height UpperHeight Upper
420200200
370150200
